Will My Car Scrape?
The Driveway Clearance Guide
The math behind breakover angles, approach angles, and why your Porsche hates your driveway. Stop guessing — start calculating.
📖 Table of Contents
1. The $50,000 Anxiety
You found the perfect house. Four bedrooms, big backyard, great school district. Then you pull into the driveway for the first time and hear it — the sickening scrape of your front splitter grinding against concrete.
Or worse: you bought the house six months ago and just took delivery of a new car. A car you've wanted for years. And now it literally cannot enter the garage without leaving a trail of carbon fiber on the pavement.
This is not a niche problem. Forums across Reddit, car enthusiast communities, and RV owner groups are filled with thousands of desperate posts from people who cannot safely navigate their own driveways. Some abandon real estate purchases entirely. Others spend $5,000–$15,000 modifying concrete curb cuts, re-grading aprons, and installing industrial ramps — all because nobody told them how to calculate one number: the breakover angle.
THE CORE PROBLEM:
Consumers lack the tools to predict whether their vehicle will physically clear their driveway's grade transition. The math is complex trigonometry. The data (elevation profiles, slope angles) is locked behind professional surveying equipment. The result? Paralysis, property damage, and financial loss.
2. The Three Angles You Must Know
Every vehicle has three geometric limits that determine whether it can traverse a slope transition without contact. Understanding these three angles is the difference between a clean entry and a $3,000 bumper repair.
Approach Angle
The max ramp angle a vehicle can climb onto without the front bumper hitting the ramp.
Breakover Angle
The max crest angle a vehicle can drive over without the undercarriage scraping the peak.
Departure Angle
The max ramp angle a vehicle can descend from without the rear bumper dragging.
All three are measured in degrees. The smaller these angles are for your vehicle, the more vulnerable it is to driveway damage.
3. Approach Angle Explained
The approach angle is determined by the front bumper overhang and the ground clearance at the front of the vehicle. It represents the steepest incline a vehicle can begin to climb without the front bumper, air dam, or front splitter contacting the slope surface.
How It's Calculated
A vehicle with 5 inches of front ground clearance and 30 inches of front overhang has an approach angle of arctan(5/30) = 9.5°. Any driveway ramp steeper than 9.5° will scrape the front.
4. Departure Angle Explained
The departure angle works identically to the approach angle but is measured from the rear axle to the lowest point of the rear bumper or exhaust. It dictates the maximum angle at which the vehicle can leave a slope without the rear end catching.
Departure angles are typically less discussed because most vehicles have shorter rear overhangs than front overhangs. However, for vehicles with aftermarket exhaust tips, tow hitches, or trailer couplers hanging below the bumper line, the departure angle becomes critically important.
WATCH OUT:
Aftermarket modifications — low-hanging exhaust tips, bolt-on diffusers, and tow hitches — dramatically reduce your departure angle. A stock departure angle of 20° can drop to 12° with a hitch-mounted bike rack installed.

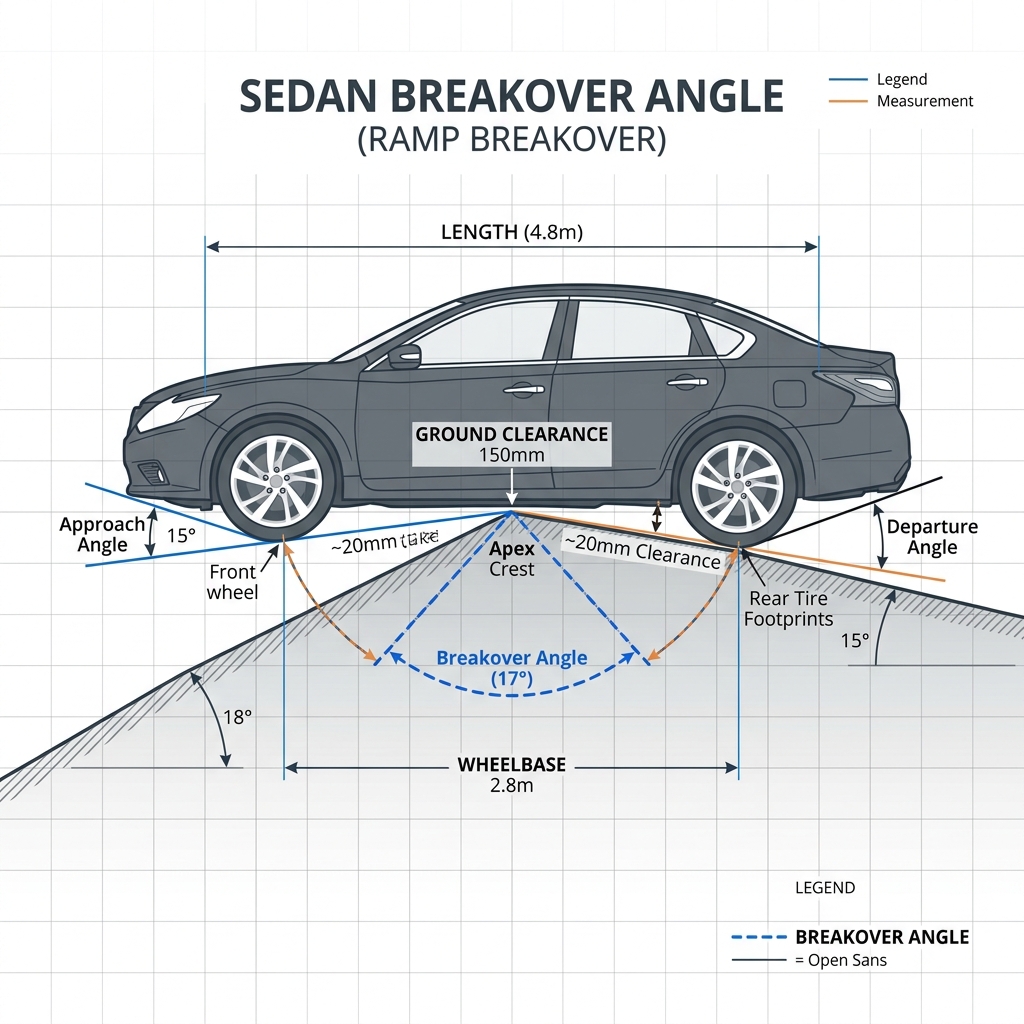

5. The Breakover Angle — The Silent Killer
This is the angle that causes the most damage and generates the most consumer anxiety. The breakover angle defines the maximum crest angle a vehicle can drive over without the midpoint of the undercarriage contacting the apex of the crest.
Think of it this way: your vehicle is a rigid beam suspended between two wheels. When that beam drives over a sharp hill (like a driveway meeting a flat garage pad), the peak of the hill pushes up into the belly of the vehicle. If the angle of that peak exceeds the vehicle's breakover angle, the car becomes "high-centered" — stuck on the apex with wheels potentially lifting off the ground.
Why It's the "Silent Killer"
Unlike approach and departure angles (which are visible — you can see your bumper is close), the breakover angle involves the hidden undercarriage. By the time you hear the scrape, you've already gouged your oil pan, exhaust, or structural cross-members. There is no visual warning.
6. The Math: How to Calculate Your Breakover Angle
This is where consumers get lost. The breakover angle requires knowing your vehicle's wheelbase and minimum ground clearance, then applying inverse trigonometry.
The Formula
This means any driveway crest sharper than 5.4° will scrape the undercarriage of a Porsche 911. For reference, a typical residential driveway apron transition is 8–15°. That's not close — it's a guaranteed scrape.
What You Need to Know
- 1. Find your vehicle's wheelbase — the distance between the center of the front and rear axles (in your owner's manual or a quick web search).
- 2. Find your ground clearance — the lowest point of the undercarriage to the ground (usually the exhaust or oil pan).
- 3. Plug into the formula above. If the result is less than your driveway's transition angle, you will scrape.
7. Vehicle Clearance Reference Table
We've pre-calculated the breakover angles for popular vehicle categories. Use this to quickly assess your risk level.
| Vehicle Type | Typical Ground Clearance | Typical Wheelbase | Breakover Angle | Risk Level |
|---|---|---|---|---|
| Lowered Sports Car | 3.5–4.5" | 95–105" | 4–5° | EXTREME |
| Sports Sedan (stock) | 4.5–5.5" | 108–116" | 5–6° | HIGH |
| Standard Sedan | 5.5–6.5" | 106–112" | 6–7° | MODERATE |
| Crossover SUV | 7–8" | 104–112" | 7–9° | LOW |
| Full-Size Truck | 8–10" | 130–160" | 7–9° | LOW |
| Class A Motorhome / 5th Wheel | 10–14" | 240–520" | 2–3° | EXTREME |
* RVs and long-wheelbase trailers have lower breakover angles despite higher ground clearance because the wheelbase is so long — the belly sags over crests that shorter vehicles clear easily.
8. The Sports Car Problem
Owners of Porsche 911s, Corvettes, McLarens, Ferraris, BMW M cars, and Miatas face a uniquely frustrating situation. These vehicles are engineered for performance, which means low center of gravity = low ground clearance. The very feature that makes them incredible on a racetrack makes them enemies of residential infrastructure.
Many sports car owners resign themselves to sacrificing their front splitter. A carbon fiber splitter replacement costs $800–$2,500, and some owners go through multiple per year if their daily commute involves a steep driveway transition.
Experienced low-car owners approach driveways at a diagonal — entering at a 30–45° angle to the curb to reduce the effective grade transition. This works on mild transitions but fails completely when both the approach and departure angles are tight.
Some modern sports cars (Porsche, Ferrari, McLaren) include a "nose lift" feature that hydraulically raises the front by 1.5–2 inches. This adds approximately 2° to the approach angle — helpful, but still insufficient for many driveways with transitions above 10°.
9. The RV & Trailer Problem
If sports cars suffer from low clearance, RVs and long trailers suffer from extreme wheelbase length. A 43-foot Class A motorhome weighing 45,000 pounds with 12 inches of ground clearance sounds like it has plenty of room — until you do the math.
Real-World RV Calculation
That's right — a grade change exceeding 1.1 degrees over the vehicle's length risks ripping off leveling jacks, plumbing fixtures, and sewer connections. One RV owner crowd-sourced this formula on GoRVing forums after being quoted $8,000 to repair underbody damage from a single driveway entry.
What Gets Destroyed
- • Leveling jacks and stabilizers
- • Sewer plumbing connections
- • Rear bumper and tow hardware
- • Underbelly fabric and insulation
- • Propane tank mounts
Prevention Checklist
- ✓ Measure transition angle before purchase
- ✓ Maximum 3° grade change for Class A
- ✓ Maximum 5° for travel trailers
- ✓ Install gradual vertical curves at apron
- ✓ Consider a pull-through pad layout
10. Real-World Consequences
The scraping problem isn't theoretical. Here's what consumers actually report:
"I have deep, permanent gouges in my concrete from the previous owner's truck. Every visitor with a sedan scrapes on the way in."
— r/HomeImprovement
"We walked away from our dream house because I couldn't verify if my 911 would clear the driveway. No one — not the realtor, not the builder — could give me an answer."
— r/cars
"Spent $3,500 on heavy-duty rubber ramps and still scrape my exhaust. The concrete company wants $12,000 to re-grade the apron."
— r/Cartalk

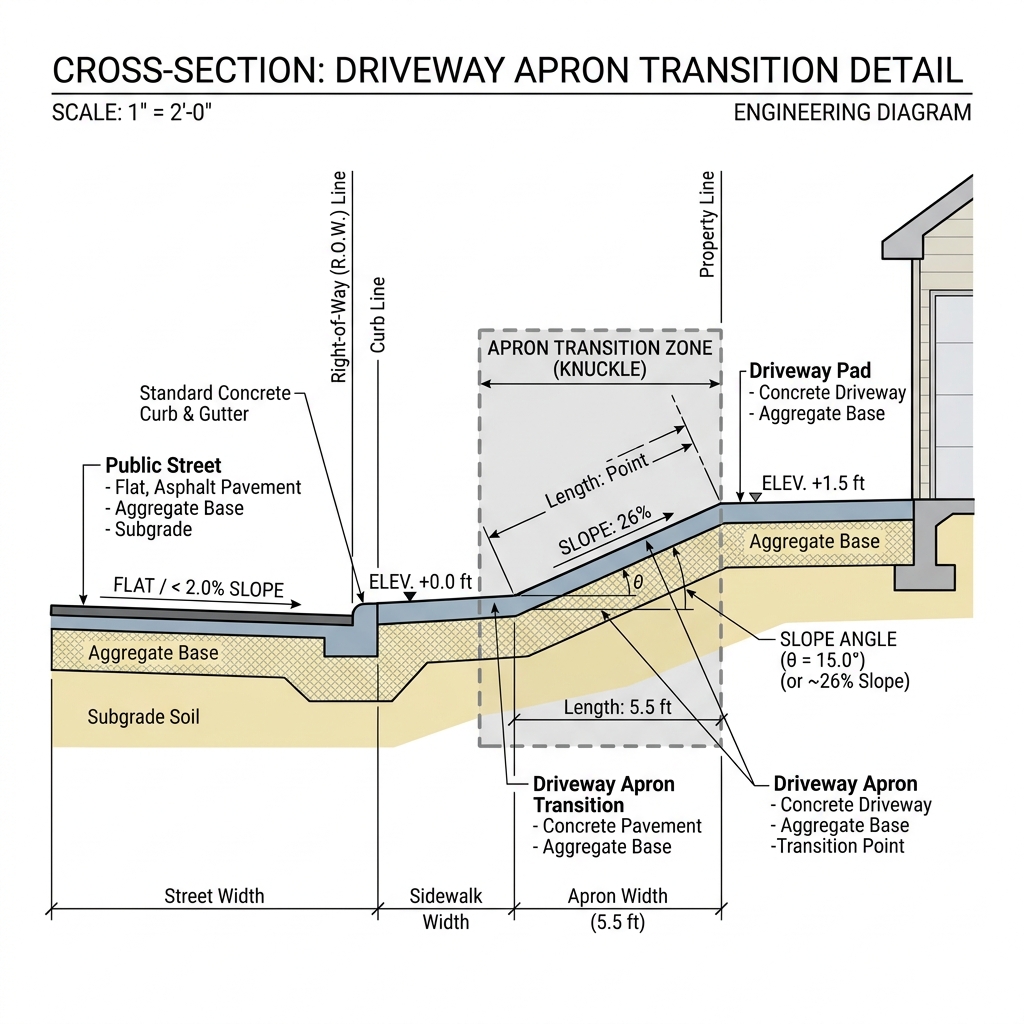

11. The Apron Transition: Where Damage Happens
The driveway apron — the 6–10 foot section where the street meets the driveway — is ground zero for scraping damage. This is where the grade changes most abruptly, creating the "crest" that catches undercarriages.
A properly engineered apron uses a vertical curve — a gradual, concave-to-convex radius that eases the grade transition over 6–10 feet. An improperly built apron has a sharp "knuckle" where the street and driveway meet at an abrupt angle. That knuckle is what catches your car.
Apron Grades That Cause Problems
12. Engineering Solutions for Steep Transitions
If your driveway scrapes, you have options. They range from $50 rubber ramps to $15,000+ full re-grading projects.
Heavy-duty rubber or plastic ramps placed at the curb transition. Inexpensive and removable. Downside: they shift, get stolen, and look ugly. Capacity limits may not support heavy vehicles.
A contractor grinds down the top of the concrete crest to reduce the angle by 2–4°. Effective but limited by the concrete thickness. Won't work if the transition is too severe.
Replace the standard raised curb with a rolled (radius) curb that creates a gentler ramp. Requires a city permit and may be restricted by HOA or municipal codes.
Demolish the existing apron and repour with a proper vertical curve (6–10 feet of gradual transition). The gold standard. Eliminates the problem permanently. Requires permits and engineering review.
13. Driveway Slope vs. Home Value
A scraping driveway isn't just a car problem — it's a real estate problem. Homes with known steep driveway transitions sell at a discount, particularly in markets with educated buyers.
Buyer Deterrents
- ✗ Visible scrape marks on concrete
- ✗ RV owners immediately disqualified
- ✗ Insurance concerns for delivery trucks
- ✗ ADA accessibility failures
Value Adds
- ✓ Properly graded vertical curve at apron
- ✓ Rolled curb cut for easy access
- ✓ Documented grade measurements
- ✓ RV-friendly pad or pull-through
14. How to Measure Your Driveway's Grade Transition
Before hiring a contractor or buying ramps, you need to know your actual transition angle. Here are three methods, from easiest to most precise.
1 Satellite Slope Calculator (Fastest)
Use our free satellite slope calculator to draw your driveway on real aerial imagery. We use Google Elevation API to compute the grade percentage and degree angle across your entire driveway surface — including the critical apron zone.
2 Smartphone Inclinometer (Quick Physical Check)
Place your phone flat on the driveway at the steepest transition point. iPhone: Open Measure → Level. Android: Any free "Clinometer" app. Note the degree reading. Compare it against your vehicle's breakover angle from the table above.
3 Straight Edge + Angle Finder (Most Precise)
Place a 4-foot straight edge across the sharpest part of the apron transition. Use a digital angle finder (about $20 at any hardware store) to measure the angle between the straight edge and the driveway surface. This gives you the exact crest angle to compare against your breakover spec.
15. Frequently Asked Questions
What is a breakover angle?
The breakover angle is the maximum angle of a crest or hump that a vehicle can drive over without the undercarriage scraping the ground at the midpoint between the front and rear axles. It depends on wheelbase length and ground clearance.
Will a lowered car scrape on my driveway?
It depends on the grade transition angle at your driveway apron. Cars with less than 5 inches of ground clearance are at high risk on driveways with sharp transitions above 8–10°. Use our satellite slope calculator to check your specific driveway.
What driveway slope is safe for an RV?
Most Class A motorhomes require grade transitions below 3–5°. A 43-foot RV with 12 inches of clearance can only handle about 1.1° of grade change over its length without bottoming out. Travel trailers are slightly more forgiving at 5–7°.
How do I fix a driveway that scrapes my car?
Solutions range from $50 rubber ramps (temporary) to $15,000 full apron re-grading (permanent). Middle options include concrete shaving ($500–$2,000) and rolled curb cut installation ($2,000–$5,000). The best fix depends on how severe the transition angle is.
Can I check a driveway's slope before buying a house?
Yes. Use our satellite slope calculator to check the grade at any US address — no site visit required. You can also use a smartphone inclinometer app during a showing.
Does the "nose lift" on sports cars actually help?
It helps, but often not enough. A typical nose lift raises the front by 1.5–2 inches, adding roughly 2° to the approach angle. If your driveway transition is 12° and your approach angle is 10° (with lift), you'll still scrape. It's a supplement, not a solution.
What's the difference between slope percentage and degrees?
Slope % = (Rise ÷ Run) × 100. To convert: Degrees = arctan(% ÷ 100). For example, a 10% slope = 5.7°. A 25% slope = 14°. Vehicle clearance specs use degrees; driveway construction uses percentages. Both describe the same physical angle.
16. Final Verdict: Check Before You Buy
Whether you're buying a house, buying a car, or parking an RV — the slope of your driveway is not a detail. It's a deal-breaker.
The math isn't hard once you have the data. You need two numbers: your vehicle's breakover angle and your driveway's transition angle. If the driveway angle exceeds the vehicle angle, you will scrape. Period.
The problem has always been access to the data. Professional surveyors charge $500+ for a site visit. Satellite elevation data was locked behind GIS paywalls. That's no longer the case. Use our free tools to check any address, calculate your exact grade, and make confident decisions without a single phone call.
